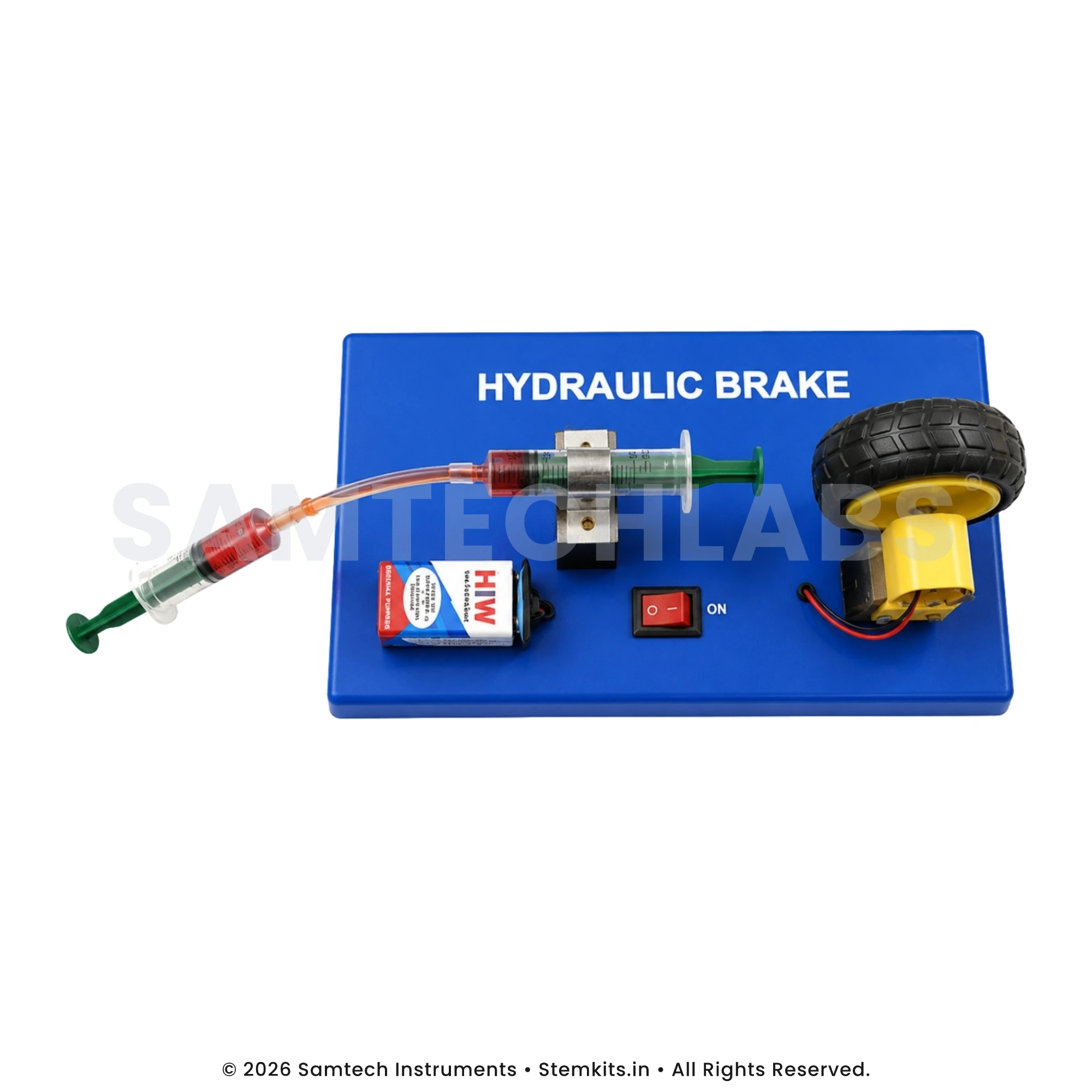

Hydraulic Brake Model

Name: Hydraulic Brake Model
Brand: Samtech Instruments
SKU: PHY-123
Rating: 4.7 (9 reviews)

In StockBulk orders available

SKU: PHY-123

★★★★★4.7(9 reviews)

Demonstrates the working principle of hydraulic braking systems using Pascal’s Law and fluid pressure transmission.
Features interconnected hydraulic cylinders and fluid-filled tubing mounted on a durable base for clear demonstration
Shows how force applied at one point is transmitted through hydraulic fluid to produce greater braking force at another point
Helps students understand the operation of hydraulic brakes used in automobiles, machinery, and industrial equipment

SKU

PHY-123

Product Description

Best forClass 8–11

BoardsCBSE · ICSE

UseDemonstration

Made inIndia

A hydraulic brake model — shows how pressing the pedal transmits fluid pressure (Pascal's Law) to brake all wheels together.

How it works

Press the master piston (pedal)
Fluid transmits the pressure through the lines
The brake pistons clamp at the wheels

What students learn

Explain hydraulic braking
Apply Pascal's Law to brakes
Describe pressure transmission in fluids

Try these experiments

Press the pedal and watch all brakes act
Discuss why fluid (not air) is used
Relate to car brakes

Curriculum fit

Board	Class	Chapter / topic
CBSE	8	Force and Pressure
CBSE	11	Mechanical Properties of Fluids

In the box

Hydraulic brake working model
Fluid lines and pistons

Pairs well with

Hydraulic Press ModelPHY-122

4 Stroke Petrol Engine ModelPHY-156

Questions

Frequently Asked Questions

The Hydraulic Brake Model is manufactured by Samtech Instruments (JAYSEE brand), a science laboratory equipment manufacturer based in Ambala Cantt, Haryana, India, producing educational lab apparatus for schools and institutions for over 20 years (since 2002).

The Hydraulic Brake Model suits secondary and senior secondary students (typically Classes 8 to 12) for both teacher demonstrations and student practicals, aligned to CBSE, ICSE and State board science curricula.

Yes. As a direct manufacturer, Samtech Instruments offers competitive bulk pricing for schools, dealers and institutions, with GST invoicing and full support for government (GeM) tenders. A minimum order quantity applies; message us on WhatsApp for a quote.

Pricing for the Hydraulic Brake Model is shared on enquiry, since it depends on quantity and specification. Send the model name on WhatsApp (+91 86838 78878) and we will share the current price, availability and lead time.

Yes. The Hydraulic Brake Model is made in-house at our Ambala Cantt facility and quality-checked before dispatch. We ship pan-India in about 4 to 5 working days; bulk and institutional orders are packed securely for safe transit.
